7.3.4 Hash Tables

For efficiency, hash tables are the best method. Most production-quality compilers use hashing for their symbol table structure.

Lots of hashing functions have been developed for names (See Exercise 5 ). It has been joked that the hashing table for symbol tables is irrelevant as long as it keeps the variables I, N, and X distinct!

The hashing functions consist of finding a numerical value for the identifier, perhaps some combination of the ASCII code as a number or even its bit code, and then performing some of the techniques used for hashing numbers (taking the middle values, etc.).

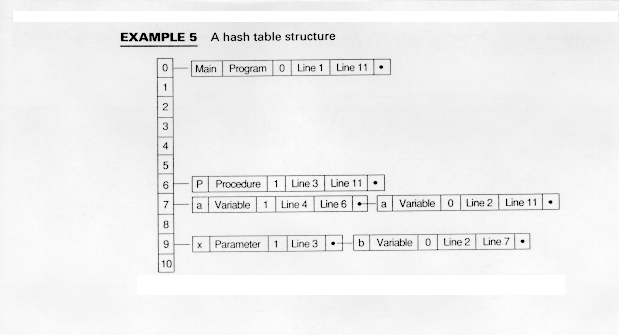

Example 5 creates a hash table using the formula

where # is the ASCII value of the letter.

Notice in Example 5 that both instances of variable a have been hashed to the same position in the hash table and that both x and b have hashed to the same position.

If the hash function distributes the names uniformly, then hashing is very efficient - O(1) in the average case. The worst case, where all names has to the same number, has a time O(n). This case is unlikely, however.

More space is generally needed for a hash symbol table structure, so it is not as space-efficient as binary trees or list structures.

If new entries are added to the front of the linked structure, scoping is easily implemented in a single table. In fact, separate tables usually take up too much extra space.
