CS 2223 Mar 30 2018

Lecture Path: 12
Back Next

Expected reading: 458-467
Daily Exercise:
Classical selection: Bach: Suite No. 1 in G for Cello (1717-1723)
Musical Selection: Peter Cetera: Glory of Love (1986)

For one wild, glad moment we snapped the chain that binds us to earth, and joining hands with the winds we felt ourselves divine...

The Story of My Life
Helen Keller

1 Hashing With Separate Chaining

1.1 HW2

Opening discussion of HW2 here. Due today at 2PM.

Note that HW3 is to be assigned on Apr 03 2018 and will be due on Apr 12 2018.

1.2 Lecture

The Symbol Table (introduced last lecture) represents the ability to store a collection of values to be associated with a given key. The initial implementation stored all (key, value) pairs in a single linked list. This leads to inefficient performance when an increasing number of elements are being stored.

Specifically, when retrieving (get) or inserting (put) a value into the Symbol Table, the performance was directly proportional to the number of elements already stored by the Symbol Table.

We need some way to reduce the length of the linked lists. One solution that works very well in practice is to use a hash function to uniformly partition the keys into different linked lists. This is the intuition and basis for Hashing.

So we start not with a single linked list, but an array of SeparateSearchST objects as we introduced in last lecture. The question remains, however, as to how to partition the keys. The common way to do this is to develop some hashCode method that returns an integer based on the contents of a specific value.

The following is a sample hashCode method for the java.lang.String class:

public int hashCode() { int h = hash; if (h == 0 && value.length > 0) { char val[] = value; for (int i = 0; i < value.length; i++) { h = 31 * h + val[i]; } hash = h; } return h; }

This computed hash value is not guaranteed to be unique. There may be multiple keys that hash to the exact same value. However it is essential that if two key values are equal to each other, then they produce the same hash code.

Each of the fundamental Java object types (Integer, Double, Float, String) provides a reasonable hashCode method that you can use. For example,

Hello gives 69609650 aaaaaa gives -1425372064

As you can see, sometimes hashCode returns a negative number, because of mathematical overflow – note that hashCode returns an integer.

Now comes the premise, if this hashCode method does a good job in generating uniform integers, then you can create separate SequentialSearchST objects into which to add the (key, value) pairs. But how many objects should we create initially? Instead of worrying too much about that question, start with an initial number, and then resize as needed if the performance begins to suffer.

We are now ready to review the code.

public class SeparateChainingHashST<Key, Value> { int N; // number of key-value pairs int M; // hash table size SequentialSearchST<Key, Value>[] st; // array of symbol tables int INIT_CAPACITY = 4; // initial size int AVG_LENGTH = 7; // Threshold to resize /** Initialize empty symbol table with <tt>M</tt> chains. */ public SeparateChainingHashST(int M) { this.M = M; st = (SequentialSearchST<Key, Value>[]) new SequentialSearchST[M]; for (int i = 0; i < M; i++) { st[i] = new SequentialSearchST<Key, Value>(); } } /** Choose initial default size. */ public SeparateChainingHashST() { this(INIT_CAPACITY); } /** Convert hashCode() into index 0 and M-1 */ int hash(Key key) { return (key.hashCode() & 0x7fffffff) % M; } public int size() { return N; } public boolean isEmpty() { return size() == 0; } public boolean contains(Key key) { return get(key) != null; } public Value get(Key key) { int i = hash(key); return st[i].get(key); } public void put(Key key, Value val) { // double table size if average length of list >= AVG_LENGTH if (N >= AVG_LENGTH*M) resize(2*M); int i = hash(key); if (!st[i].contains(key)) N++; st[i].put(key, val); } }

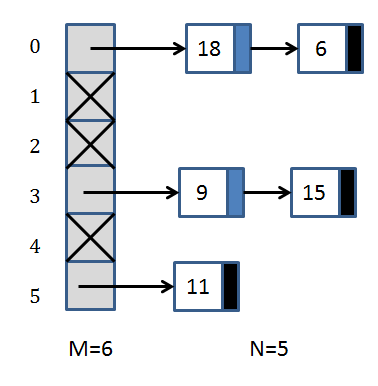

After a few insertions into a table with M=6 separate chains (you might hear me say the word "bin" or "bucket" since those are common in the literature) you could have the following situation:

In this case, the hash function is simply "compute modulo 6 of the value being inserted".

1.3 How To Scale

Assuming that the has uniformly distributes key values, this code improves the performance of each operation.

Specifically, when retrieving (get) or inserting (put) a value into the Symbol Table, the performance is now directly proportional to N/M

However, if you do nothing to change the number of M separate chains, you will eventually have decreasing performance, because N will be substantially greater than M.

Much like you have seen before, you need to resize the array of separate chains. However, what to do with the elements that have already been placed into the hash table? It turns out that you have to take a substantial performance penalty hit and reinsert all elements in the hashtable because they may end up in a different index because the value of the hash function is dependent on M.

The following resize method takes advantage of the existing constructor to simplify its implementation. Once done, it updates the st[] array to use the newly created one.

void resize(int chains) { SeparateChainingHashST<Key, Value> temp = new SeparateChainingHashST<Key, Value>(chains); for (int i = 0; i < M; i++) { SequentialSearchST<Key,Value>.Node node = st[i].first; while (node != null) { temp.put(node.key, node.value); node = node.next; } } M = temp.M; N = temp.N; st = temp.st; }

1.4 Demonstration

If you run the SeparateChainingHashST sample code, you will see the following output:

LAST YEAR 213557 words in the hash table. Table has 45056 indices. there are 392 empty indices 99.1299715909091% maximum chain is 16 number of single is 1841 THIS YEAR 321163 words in the hash table. Table has 49151 indices. there are 79 empty indices 99.8392708184981% maximum chain is 19 number of single is 473

Note the average number one would expect in a chain is 213557/45056 or 4.74 which is impressive.

These results are incredibly promising! You can determine if an item exists in the Hash Table using no more than 19 comparisons. Of course, the memory requirements are noticeable, but you have to admit this is very nice.

There is a direct comparison to make with using Binary Array Search over a sorted array. First, you would have to sort all strings and construct an array for them. Thereafter, the maximum number of comparisons to locate an entry would be 1 + Floor(log 321163) or 1 + Floor(18.29295) = 19.

This exercise demonstrates that using additional space can help improve performance.

1.5 Accounting BinaryArraySearch inspections

We have only referred to "log N + 1" for number of comparisons to make when performing Binary Array Search on an ordered collection of N values.

What if N is not a power of 2? The formula changes just slightly, to be 1 + Floor(log N)".

1.6 Improved Tilde Approximation Explanation

Sometimes when we do Tilde approximation, the goal is to analyze running time performance.

Sometimes we use Tilde approximation to count the number of key operations

1.7 Sample Exam Question

A researcher proposes to design a data type which consiststs of a linear linked list of nodes, each of which stores an array of K individual comparable items in sorted order. Only the last node in the list may contain fewer than K items. This data type will offer the following operations:

• insert (v) – insert v into the collection

• remove (v) – remove v from the collection

• contains(v) – check whether collection contains v

He claims he needs ~ log(N*K) performance for determining whether the collection contains a given element.

From this idea, there are several possible questions to ask:

• Start with the contains method. Come up with an algorithm for this method. What is the performance of your method?

• Is his performance claim correct?

• Write pseudo code for insert.

• Write pseudo code for remove.

1.8 Version : 2018/04/01

(c) 2018, George Heineman
