CS 4341 Project #3: Natural Language

Due Monday, April 28

This project has 2 parts:

Simple ATN Interpreter

Write and demonstrate a simple Augmented Transition Network Interpreter for ``understanding'' natural language input. The interpreter will take the description of a grammar, and a dictionary, and will execute actions that will produce something that represents the ``meaning'' of the sentence. It can produce either a command or a partially filled-in frame (your choice). An important intermediate step to understanding is building a syntactic description of the sentence. The interpreter must be independent of the grammar and dictionary. It would be ideal if both of those can be input from files.

The network consists of Labeled States connected by Labeled Directed Arcs. The labels on the states can be used to note what has been recognized up to that point in the grammar. Arcs can be traversed if the next thing in the sentence is what is indicated by the label of the arc. A Label can be a word, a word category (e.g., Noun), or the name of a sub-network (e.g., NounPhrase). Each subnet corresponds to a Non-Terminal in the grammar. An attempt to traverse a given arc can succeed or fail. If a sub-network name appears on an arc then that network is used to determine whether the arc can be traversed. Recognition takes place in a net when a distinguished state (*END*) is reached. Complete recognition of an input requires recognition by the top-most net, with no more words left in the input. One way to accomplish this is to place a special symbol, such as END-OF-INPUT at the end of the input sentence; the sentence is successfully parsed if and only if this symbol is recognized while reaching the *END* state. For a sample ATN, see page 600 of ``Artificial Intelligence.''

Transition across an arc can depend on the successful traversal of a subnet; you will need a stack to keep track of the parsing situation. As more than one arc can emerge from a state it is necessary to pick one to follow when you reach a state. This is done by considering the arcs as ordered, and selecting them in order. As an attempt to follow an arc may fail, you will have to keep track, for every state, of the arcs that have still to be tried. At failure the ATN will backup to the last choice-point and select the next arc to try.

To be more specific, each arc indicates its source and destination states and a label from the following list. The exact format is up to you.

(CAT [category]) ([post-actions])

(WRD [word]) ([post-actions])

(MEM [list]) ([post-actions])

(TEST [test]) ([post-actions])

(PUSH [state]) ([pre-actions]) ([post-actions])

The first element of the label is the arc type. The second element depends on the type. The actions can be any actions that you like. In a full-blown ATN they generally manipulate the contents of a set of registers. If you like you can use some global variables with pre-defined names and/or you can use the slots of one or more frames.

The pre-actions, if any, occur just prior to pushing to a new state. The post-actions occur just prior to reaching the destination state. Here is the list of actions. Again, the exact format is up to you.

(SET-REGISTER [register] [value])

(GET-REGISTER [register])

(LIST [contents])

The input sentence is scanned by means of an input pointer, which always points to the next input word to be examined. Arcs that succeed in recognizing an input word advance the input pointer. The CAT arc is followed if the current input word belongs to the right category. A WRD arc specifies the exact word that must be matched, while the MEM arc specifies that the input must be a member of the specified list of words such as (a, an, the). All three advance the input pointer. Note that it is traditional to refer to the current item, that is, the item just successfully parsed, in the input as ``*''.

The TEST arc is optional. If you choose to implement it, the arc can be used to check that a value/marker has been placed in one particular register (i.e., global variable). It is a special kind of conditional jump arc. You can either put a value explicitly in the arc or use a function that will obtain a value.

The PUSH arc starts processing at the network start state named. The pre-actions are done prior to transfer to the new net; the post-actions after successful completion of that net. to the PUSH arc that called it. Because the POP action does not specify a destination, its format is a bit different from the other arcs; POP does not have any destination state. It is an error to execute a POP with no prior PUSH. The form in a POP arc, which can be anything you want it to be, is returned to the calling PUSH arc as a result which can then be acted upon by the post-actions. If you like you can implement this without this return mechanism, and return results using global variables. The distinguished state that marks the end of a net (*END*) is a state with a single POP leaving it.

Note that as backtracking can occur, the state of the target data-structures must be included in each recorded state situation. These situations are recorded on a stack. If you do not include the data-structures on the stack, then you will have to undo actions! That is, you should build any frames apart from the main frame hierarchy, and only attach them to it after a completely successful parse.

You might want to have a dictionary accessing function that can check if a certain word has a certain feature. For example, (GetFeature Number *) might return Plural. The predicate (CheckFeature Number * Plural) might return T. Other functions or predicates can be invented as necessary. The exact form of the dictionary is up to you. It should probably include the Category (e.g., Noun), the Number (e.g., Plural), and the Root form (e.g., Eat, as opposed to Eating). It could also contain thematic role information for verbs (e.g., Agent + Object + Instrument).

The ATN is to be specified in some notation and read in, thus setting up a network that the ATN interpreter can act on. For extra credit, use frames to represent the ATN and the dictionary. Clearly demonstrate the action of your interpreter with several sentences. The usual documentation and demonstration standards apply. That is, you should give an overview of your algorithm and enough description so that we can understand what you did. For the dictionary and grammar, you should clearly explain the syntax.

Submit your programs and data files. You should have separate files for the ATN Interpreter, dictionary, grammar, and samples of operation.

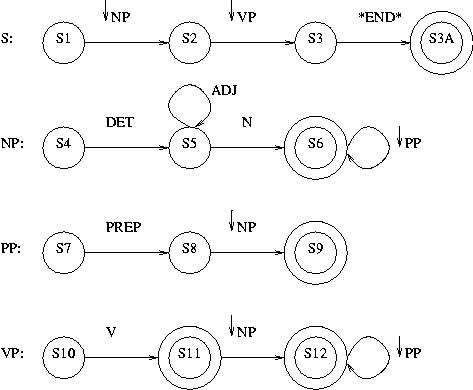

A sample ATN from class and its representation in list form (somewhat obscurely!) follow. Your input grammar does not need to use this syntax, it is merely included to be illustrative.

(DEFINE-ARC S1 S2 (PUSH S4) (SET-REGISTER SUBJECT *)
                            (SET-REGISTER TYPE DECLARATION))

(DEFINE-ARC S2 S3 (PUSH S10))

(DEFINE-ARC S3 S3A (WRD *END*))

(DEFINE-NET-POP S3A (LIST SUBJECT (GET-REGISTER SUBJECT)
                          VERB (GET-REGISTER VERB)
                          OBJECT (GET-REGISTER OBJECT)))

(DEFINE-ARC S4 S5 (CAT DETERMINER))

(DEFINE-ARC S5 S5 (CAT ADJ))

(DEFINE-ARC S5 S6 (CAT NOUN) (SET-REGISTER NOUN *))

. . .

Putting It All Together

Now use the tools you have developed to build a system that can carry on a simple conversation. Interact with the system using Natural Language. You may have to write a simple ``Natural Language Generator'' program to produce intelligible output.

The system should take natural language input and build a frame-based representation for the input. Any action taken as a result of the input should involve the generation or updating of frames also. The action may also cause rules to fire. Having understood and acted upon the input, the system must then generate a suitable response.

Here are some possibilities to consider:

The system must figure out what kind of sentence it has been given -- statement of fact, question, new rule to remember, etc.
It has to decide how to respond -- tell a fact, ask a question, nod its head, etc.
It should keep track of some part of the previous conversation to maintain continuity. For example, whether the previous input and output were in the form of questions or statements?
The system should be able to converse with a person who knows its dictionary. Give plenty of examples.
The system should be able to converse with a copy of itself. That is, if two versions of the system are running, the output of one should be acceptable input to the other. Try it! You will have to figure out a way for one version to initiate the conversation and the other to respond. Don't worry if it produces a totally silly conversation.
Can your system converse with the system developed by another project team? This is optional, but worth checking out if you have the time. Of course, you will have to have similar (identical?) dictionaries.
Anything else is up to you.

The natural language input should be about whatever you want -- the weather, classes, people, sports, robots, animals, etc. You will need to construct a dictionary of words to help parse the input. For convenience, proper names may be included in the dictionary. For example, it would be legitimate to have you and your program's names in the dictionary. Figuring out proper names, especially those with more than one word, is fairly difficult otherwise, but not impossible.

Your conversation with the system will consist of declarations, commands, and queries. Some things are easy to enter. For example:

== (hello)
(I UNDERSTAND)
== (a dog is an animal)
(I UNDERSTAND)
== (what is a dog)
(A DOG IS A-KIND-OF ANIMAL)
== (rover is a dog)
(I UNDERSTAND)
== (is rover an animal)
(ROVER IS AN ANIMAL)
== (is rover alive)
(I DO NOT KNOW)
== (if a thing is an animal then it is alive)
(I HAVE LEARNED A NEW RULE)
== (is rover alive)
(ROVER IS ALIVE)

This example is meant to be illustrative. You do not have to be overly sophisticated; simple conversations work best. New words are extremely difficult to parse and incorporate. So difficult, in fact, that they are almost out of our league (but it has been done).

Keep in mind that the main purpose of this project is to integrate the results of your previous efforts. We are more interested in having you combine rule-based inference, frame-based knowledge representation, and natural language understanding than in getting clever conversation.

The usual documentation and demonstration standards apply. In particular, describe your overall approach with an emphasis on how you have made the previous projects interact. You do not have to re-document unchanged portions of earlier projects, but you must adequately document any changes you have made to them. Submit all your programs and data files, including rules, initial knowledge base, grammar, dictionary, and of course, sample inputs and outputs.

Submitting your project

It is a good idea to place different modules into separate files. You should also resubmit your inference engine from project 1 and frame system from project 2 so that they can be run from this project. The submitted files should be self-explanatory. Submit them using turnin together with examples of your system running. Use an assignment of "proj3" to turnin, as in

/cs/bin/turnin submit cs4341 proj3 *.*

Optional

Have your system communicate with another system.

Grading

This project will be graded based on:

Correctness (40%): Does the project do what was asked? Were all the questions in the problem statement answered correctly?
Documentation (25%): Is the code understandable? Is the overall approach described well?
Examples (25%): Is every feature exercised? No bugs? Lots and lots of examples?
Style (10%): Original or unusual features. Doing more than was asked, or doing it much better than is expected.

Originality

You might find potentially relevant code from various sources: previous CS 4341 students, textbooks, /cs/cs4341/, etc. While it is perfectly legal to look at the work of others, the project team must submit its own work. Simply changing variable and function names from others' work is not considered original and is likely to be detected.

Exception: For this and subsequent projects, you are allowed to use the pattern-matching code in /cs/cs4341/ai3/match.lsp, provided that you so state.
