Building a heap

1. Inserting elements one at a time - must maintain the heap properties
2. cost: q(n lgn)
3. Heapifying an array containing the values to be stored in the heap
4. approach starting from the deepest level, sift the root of a subtree down to its position
5. Cost: q(n)

Example. Build a heap from:

2, 3, 1, 10, 9, 7, 8, 4, 6, 5



The heap ADT

Type: a set of heaps

Operations:

• insert - adds a new node to the heap such that the heap property is preserved
• remove maximum element - removes and returns the element at the root and rebuilds the heap property



C++ class for a heap

class heap {

private:

Element* Heap;

int max_size;

int curr_size;

int is_leaf(int);

int parent(int);

int left_child(int);

int right_child(int);

void sift_down(int );

void build_heap();

public:

heap(int);

heap(Element*, int, int);

~heap();

int heap_size();

void insert(Element);

Element remove_max();

};



int heap::is_leaf(int n){

return (curr_size/2 <= n) &&

(n < curr_size);

}



int heap::parent(int n){

if ((0 < n) && (n < curr_size))

return (n - 1)/2;

else

return OUT_OF_RANGE;

}



int heap::left_child(int n){

if (2*n+1 < curr_size)

return 2*n+1;

else

return OUT_OF_RANGE;

}



int heap::right_child(int n){

if (2*n+2 < curr_size)

return 2*n+2;

else

return OUT_OF_RANGE;

}



void heap::sift_down(int n){

while (!is_leaf(n)){

Element temp; int i, left, right;

left = left_child(n);

if ((right = right_child(n)) !=

OUT_OF_RANGE)

if (Heap[left]>Heap[right]

i = left;

else

i = right;

else

i = left;

if (Heap[n] > Heap[i])

return;

else{

temp = Heap[n];

Heap[n] = Heap[i];

Heap[i] = temp;

n = i;

}

}}



void heap::build_heap(){

for (int i = curr_size/2-1 ; i >= 0 ; i--)

sift_down(i);

}



heap::heap(int size){

Heap = new Element[size];

max_size = size;

curr_size = 0;

}



heap::heap(Element* array,

int m_size, int c_size){

Heap = array;

max_size = m_size;

curr_size = c_size;

build_heap();

}





heap::~heap(){

delete []Heap;

}



int heap::heap_size(){

return curr_size;

}



void heap::insert(Element v){

Element temp;

Heap[curr_size] = v;

for (int i = curr_size ; (i > 0) &&

(Heap[i] > Heap[parent(i)]) ;

i = parent(i)){

temp = Heap[i];

Heap[i] = Heap[parent(i)];

Heap[parent(i)] = temp;

}

curr_size++;

return;

}



Element heap::remove_max(){

Element temp;

if (curr_size > 0){

curr_size--;

temp = Heap[0];

Heap[0] = Heap[curr_size];

Heap[curr_size] = temp;

sift_down(0);

return(Heap[curr_size]);

}

else

return OUT_OF_RANGE;

}



Priority Queues

• probably the most important application of max heaps
• it stores objects and on request returns the object with the largest value (e.g. jobs in an operating system)



Tree traversals

• preorder traversal
• postorder traversal
• inorder does not make sense

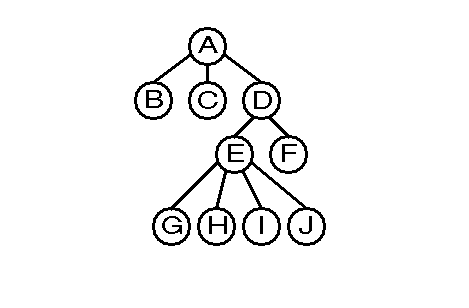

General tree ADT

Type: a set of general trees

Operations:

• return a node's value
• return a node's parent
• return a node's first child
• return a node's right sibling
• insert a new value as first child
• insert a new value as right sibling
• remove a node



Tree Implementations

1. Parent pointer implementation
2. store for each node the value and a pointer to its parent
3. useful for operations such as finding a common ancestor of two nodes

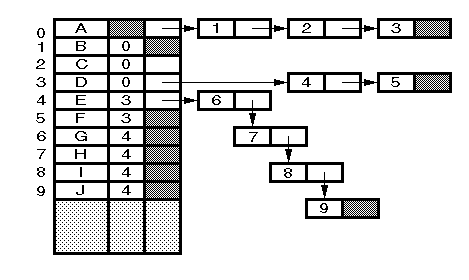

1. List of children
2. stores with each node a linked list of children
3. it is usually implemented by storing nodes in an array
4. each node contains the value, a pointer to its parent and a pointer to the list of its children

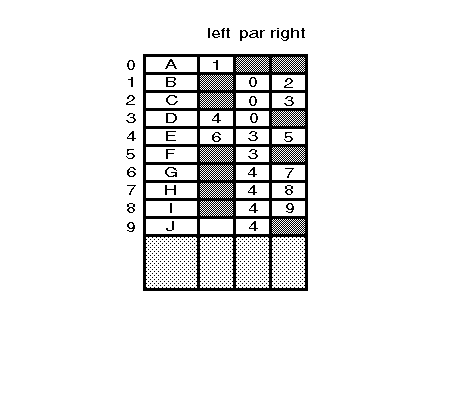

1. Left child/right sibling
2. each node stores a value, a pointer to its parent, a pointer to its leftmost child and a pointer to its right sibling

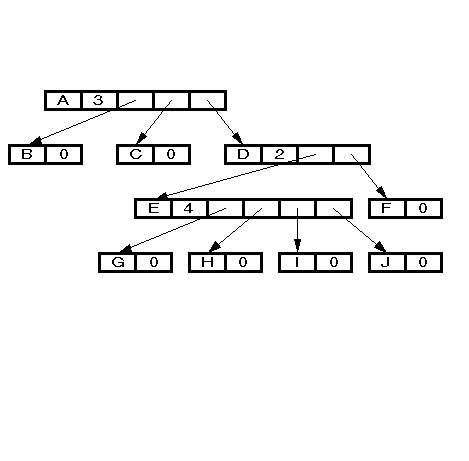

1. Dynamic node
2. extends the linked implementation to trees

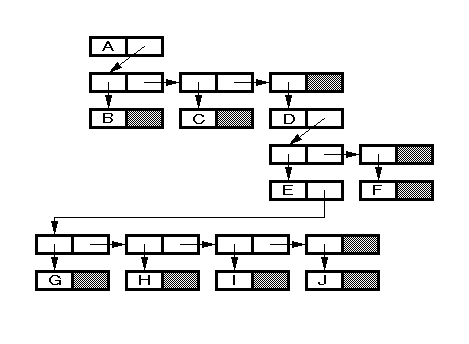

1. Dynamic left child/right sibling
2. substitutes a binary tree for a general tree

1. Sequential implementations
2. store the values as they would be implemented by a tree traversal method, plus sufficient information to describe the shap

Example.

• preorder: A(B.C.D(E(G.H.I.J)F))
